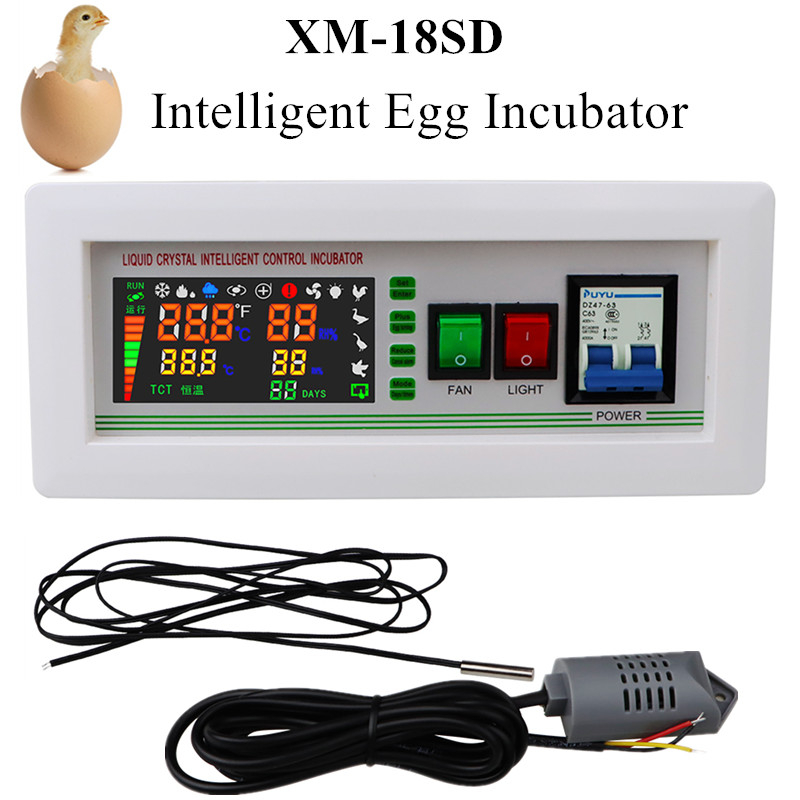

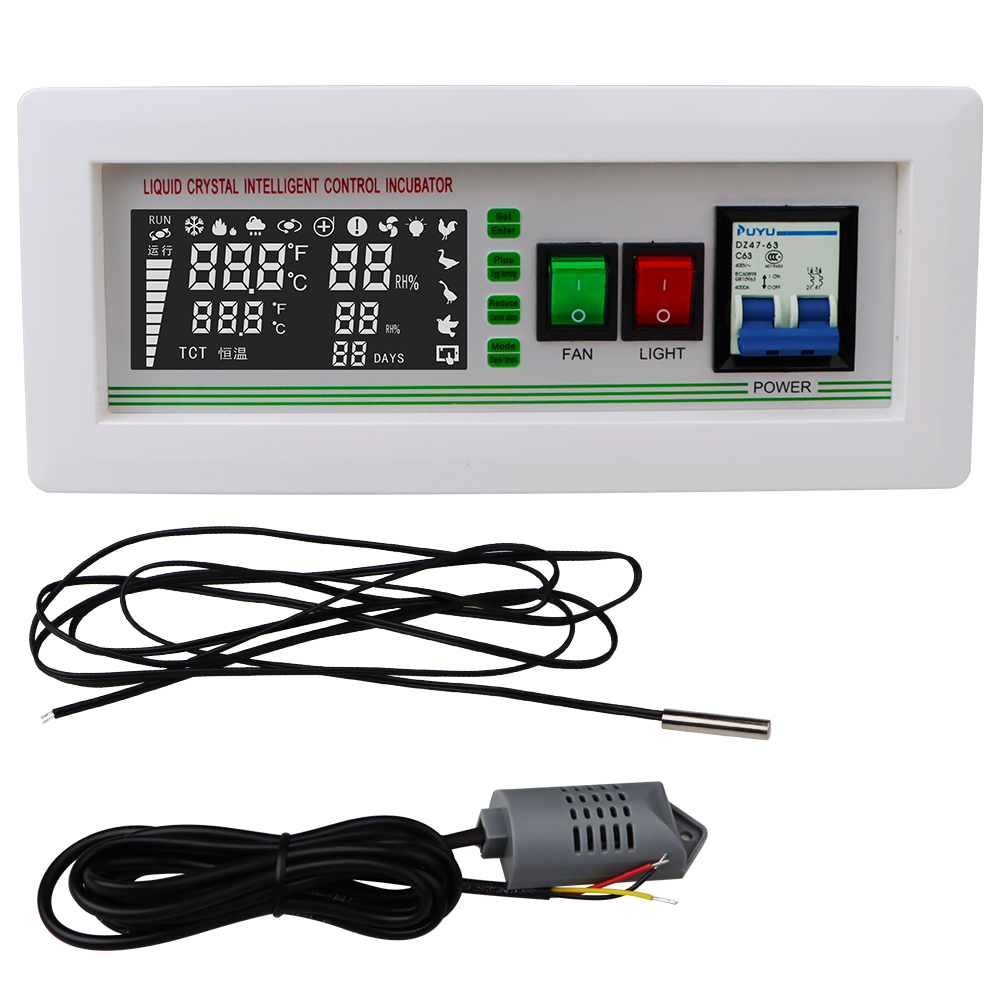

XM18SD Professional digital temperature and humidity controller for incubator

XM-18SD Intelligent Egg Incubator Incubator Controller Thermostat Full Automatic Multifunction Egg Incubator Control System

Description:

The intellgent new generation of temperature and humidity incubator is a ful intelligent microcomputer control system designed and developed by our company for the hatching industry.

The design of humanized full color screen is beautiful and vivid. At the same time, custom, chicken, duck, goose, dove, five hatching mode users are free to choose, using the latest microelectronics technology and now components, Using the microchip, the anti-interference ability is strong and the working stability Is high; the temperature sensor adopts the high precision sensor, the temperature collection is high precision, the temperature range is wide; the high performance humidiy sensor s selected, the precision is high, and the stability and reliablity of the product is ensured effectively.

Main Technical Index:

• Temperature display range: 0~40.5℃
• Temperature measurement precision: ±0.1℃
• Humidity display range: 0~99%RH
• Control release precision: ±3%RH

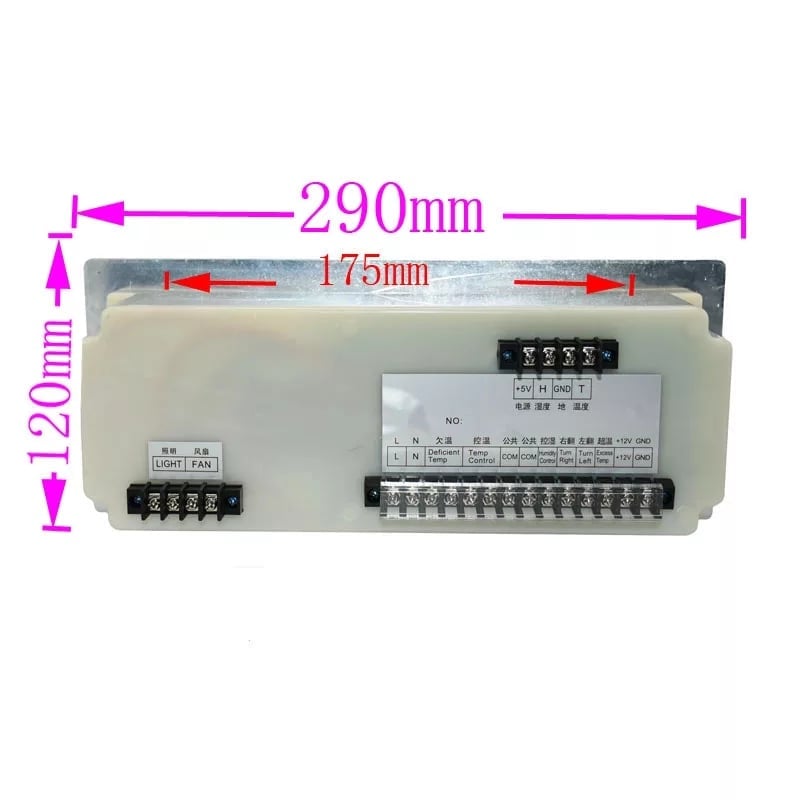

• Output lines: 8 lines (primary heating, auxiliary heating, exhaust (air exchange), turning left, turning right, humidifying,light,fan)
• Output current: primary and auxiliary heating 30A, other output 10A
• Egg turning times: maximum 999 times
• Egg turning cycle: 0~999 minutes (default 90 minutes)
• Egg turning period: 0~999 seconds (default 180 seconds)
• Air exchange cycle: 0~999 minutes (default 120 minutes)
• Air exchange period: 0~999 seconds (default 15 seconds)
• Length of measuring line: about 1.5 meters

Working conditions:

Working voltage: AC 220V,50HZ

Relative humidity: less than 85%

Ambient temperature: 0℃~60℃

The incubation setting consists of automatic incubation and user-defined incubation.
