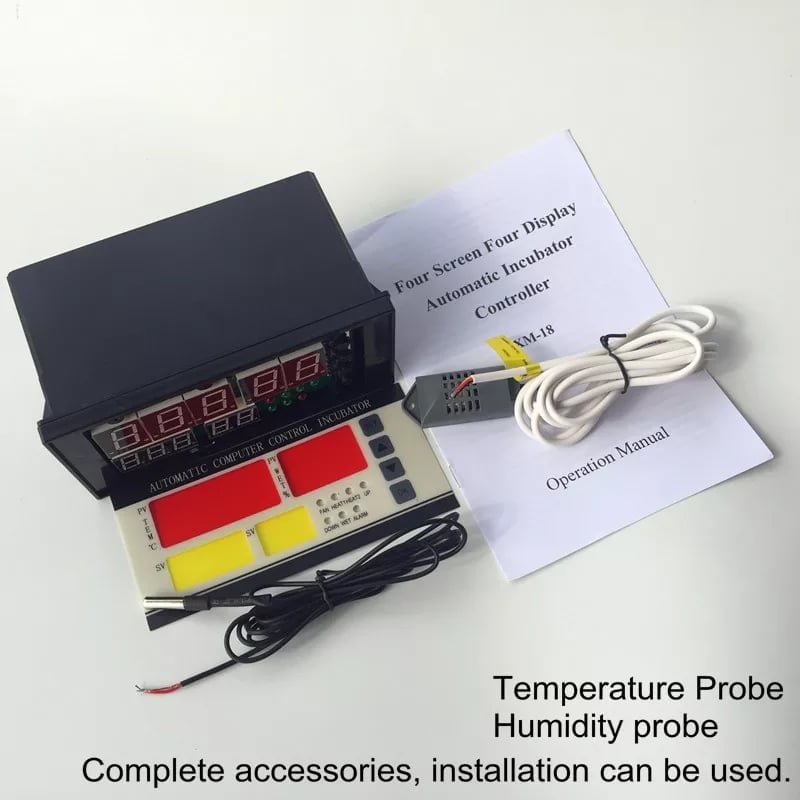

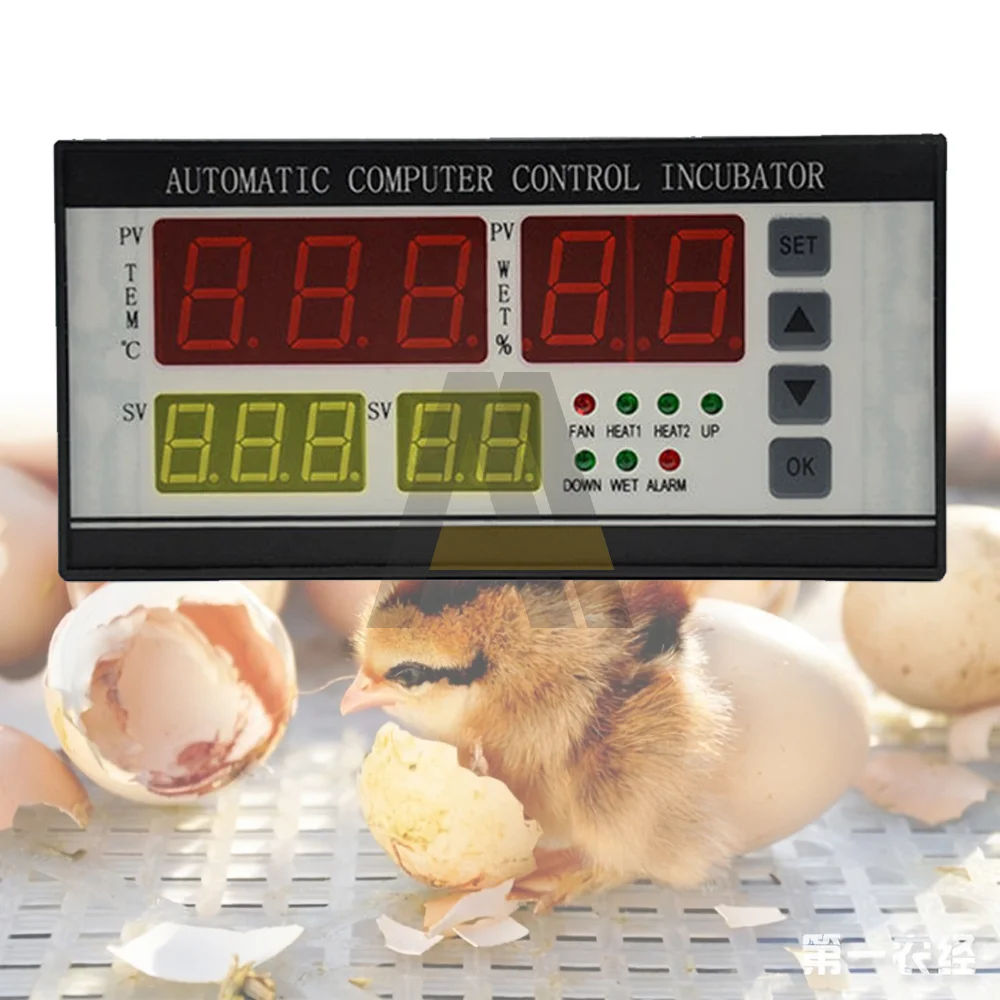

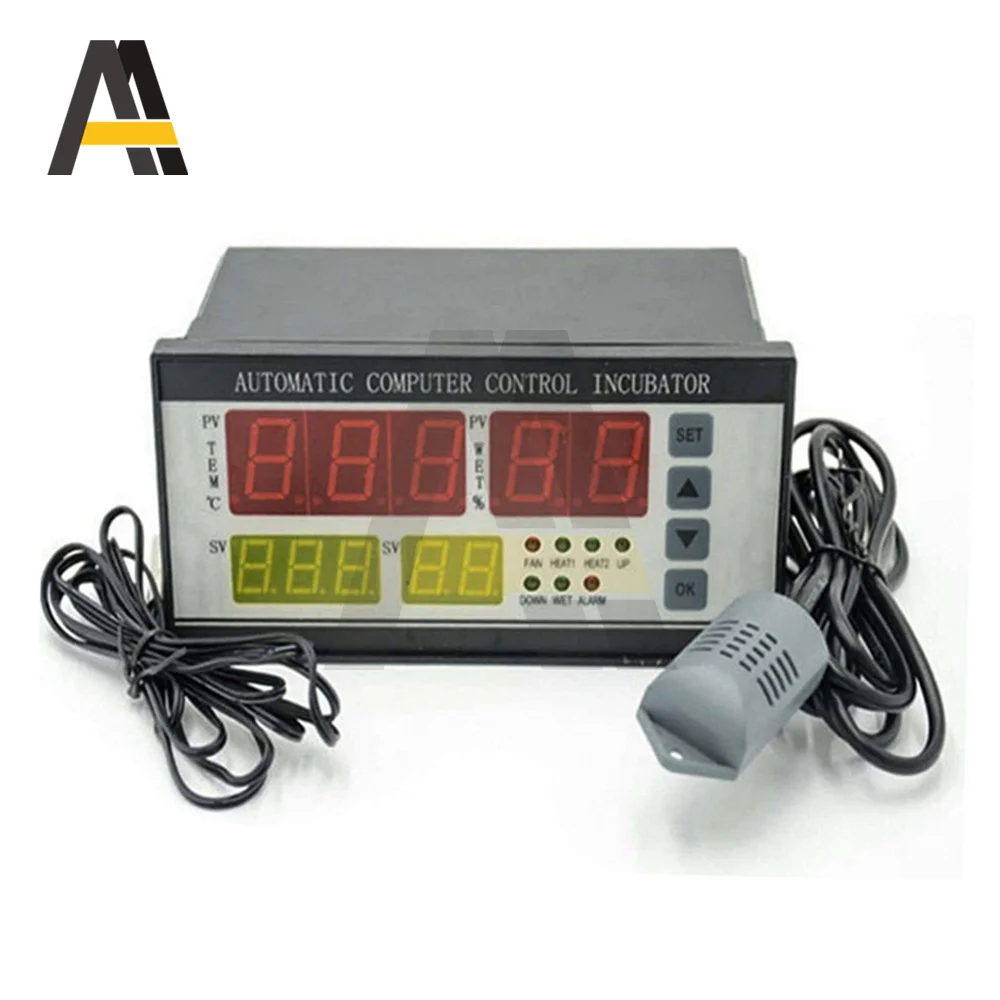

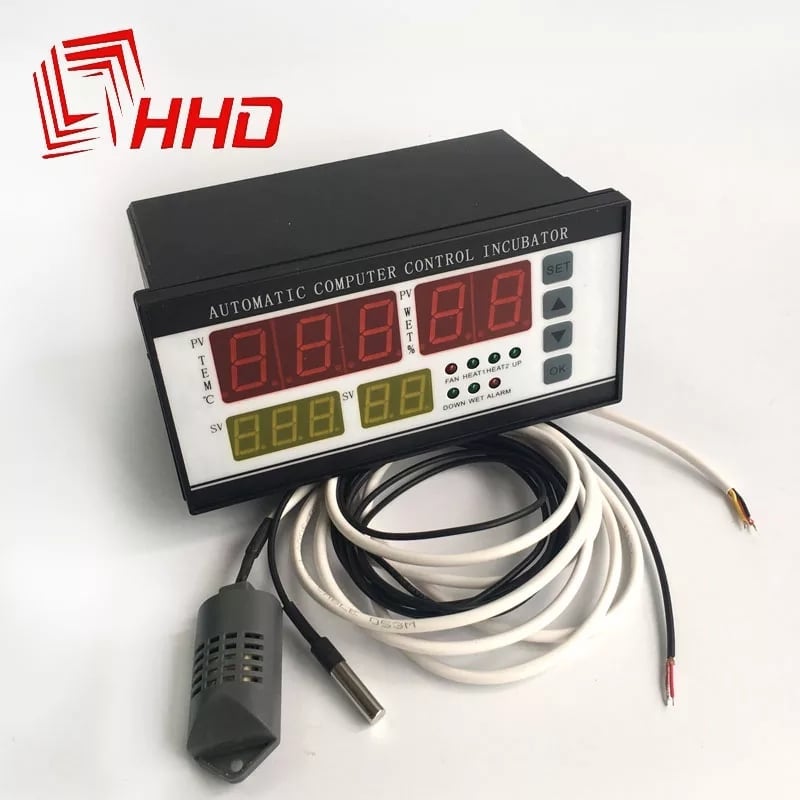

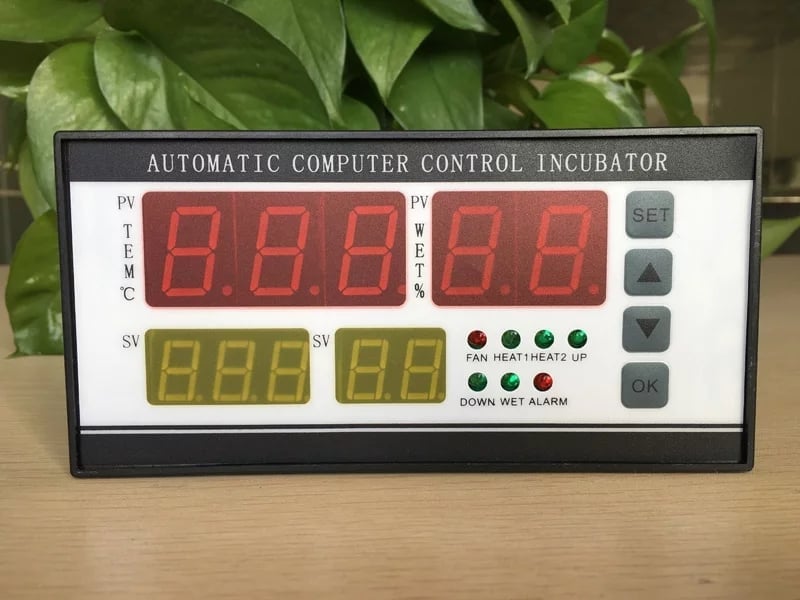

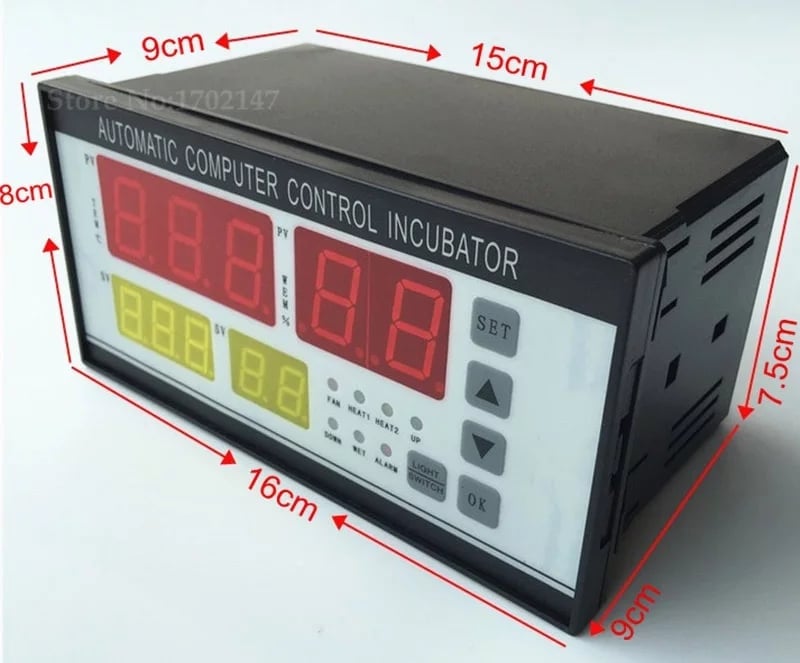

XM-18 Egg Incubator Digital Automatic thermostat controller Mini egg incubator control system Hatchery Machine
XM-18
Function:

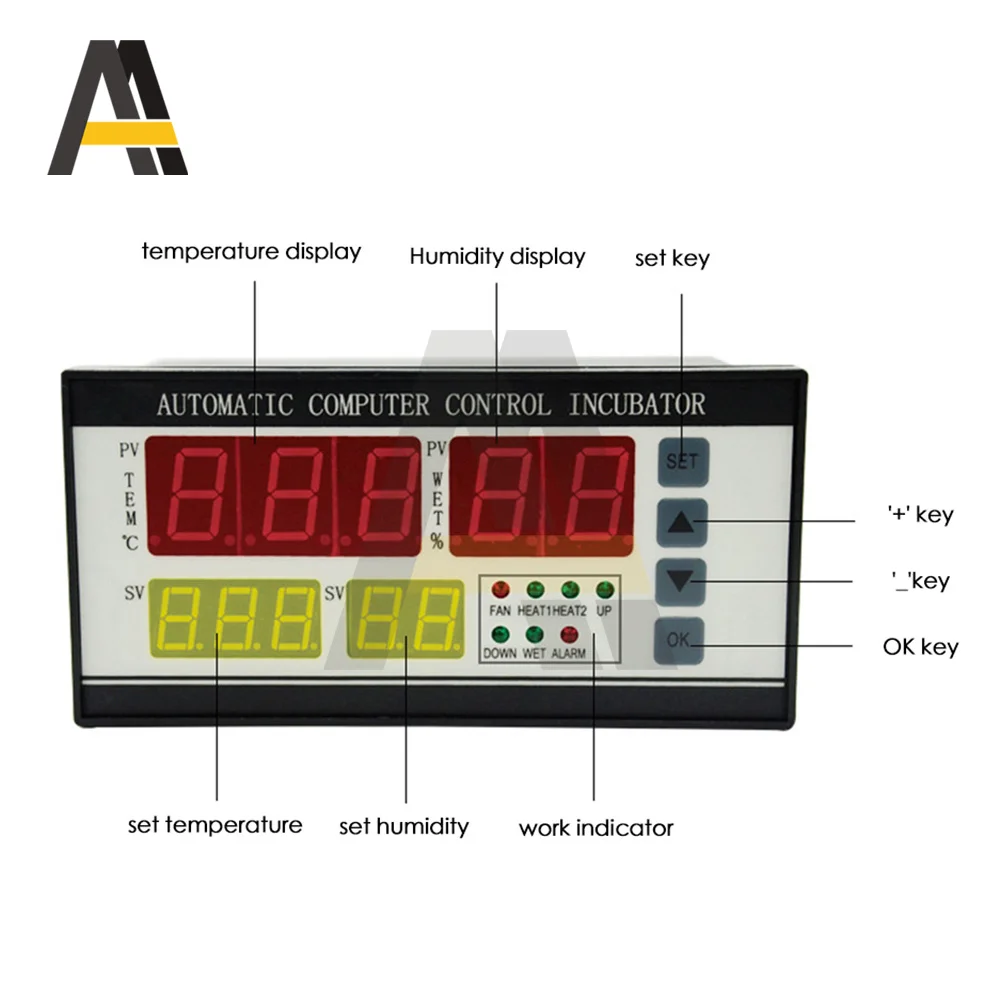

1.Digital displaying of temperature, humidity
2.Full automatically temperature controlling
3.Full automatically humidity controlling
4.Full automatically eggs turning
5.Full automatically alarming
6.Full automatically ventilator
7.Back emergency system
Main Technical Index:
1. Temperature display range: 0 ~ 99.9℃
2. Temperature measurement accuracy: ± 0.1℃
3. Humidity display range: 0-99% RH
4. Humidity control accuracy: ± 3% RH
5. Output path: 7 Road (over-temperature, temperature control, insufficient temperature, egg-left turning, egg right-turning, humidity control, alarm)
6. The maximum output load current: temperature control, insufficient temperature <= 8A/AC 220V, over-temperature, egg-left turning, egg right-turning, humidity control, alarm<= 1A /AC 220V
7. Number of egg-turning: Maximum record 999 times.
8. Cycle of egg-turning: from 0 to 999 minutes (factory set at 90 minutes)
9. Turn the eggs time: 0 to 999 seconds (factory set at 180 seconds)
10. Ventilation cycle: 0-999 minutes (factory set at 120 minutes)
11. Ventilation time: 0-999 seconds (Factory set at 30 seconds)
12. The measuring line length: 1.5 meters
Working conditions:
1. Power Supply: AC 160V ~ 240V, 50Hz or AC 110V (choose the one you need)
2. Relative humidity: less than 85%
3. Ambient temperature: -10 ~ 60℃
