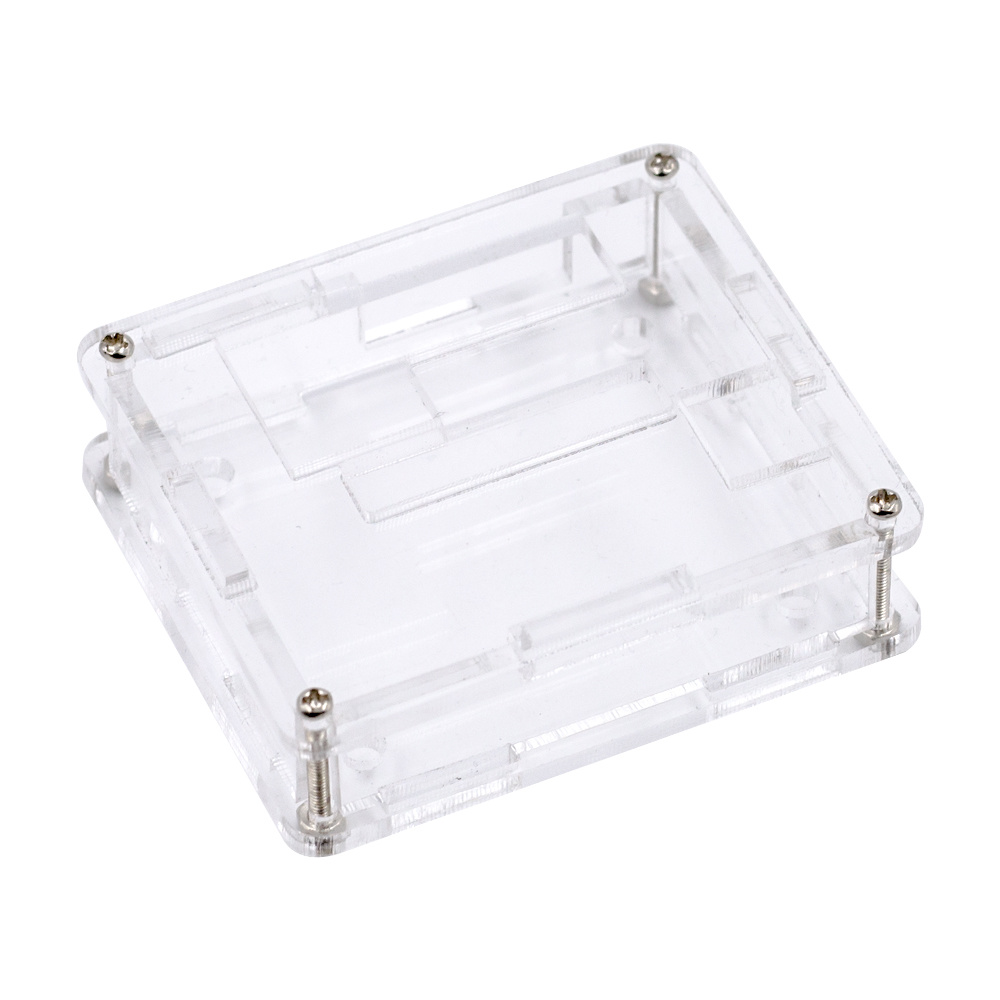

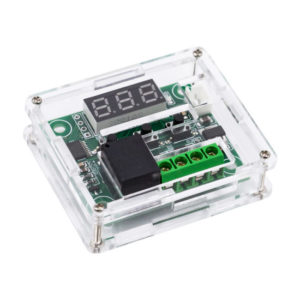

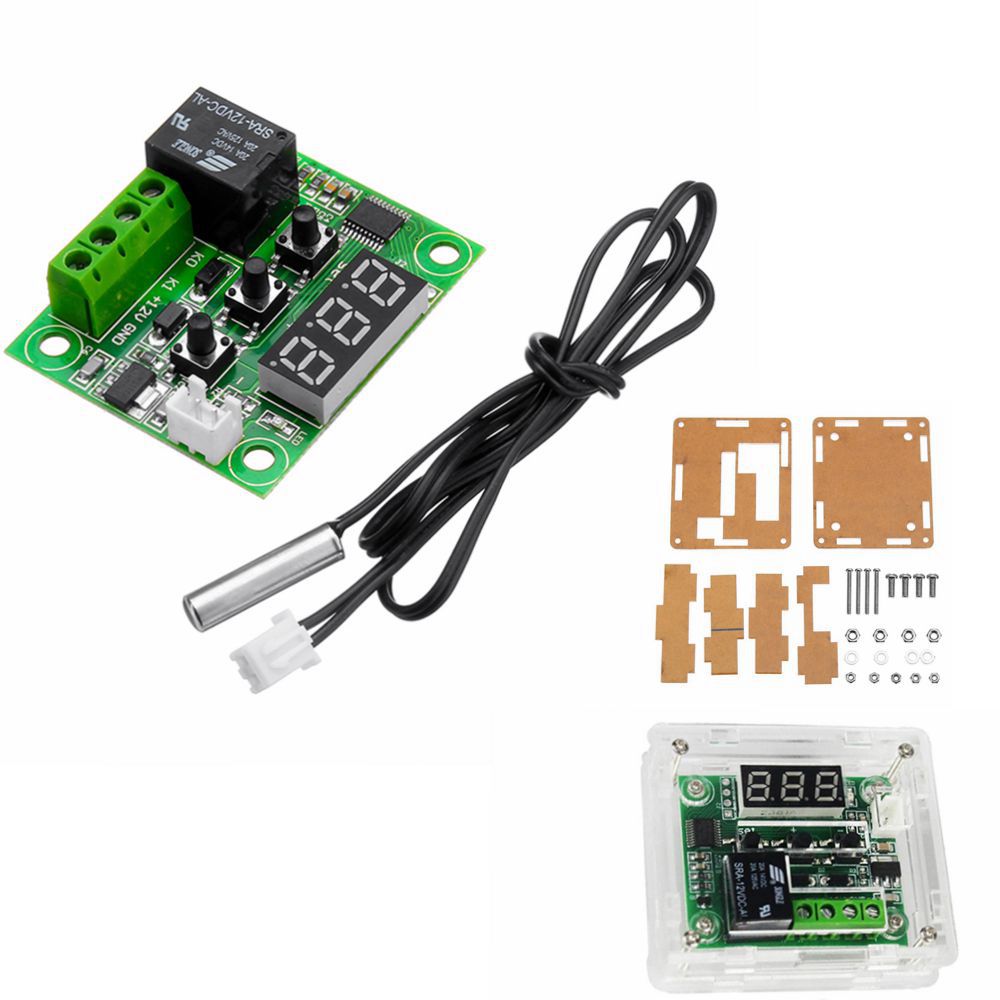

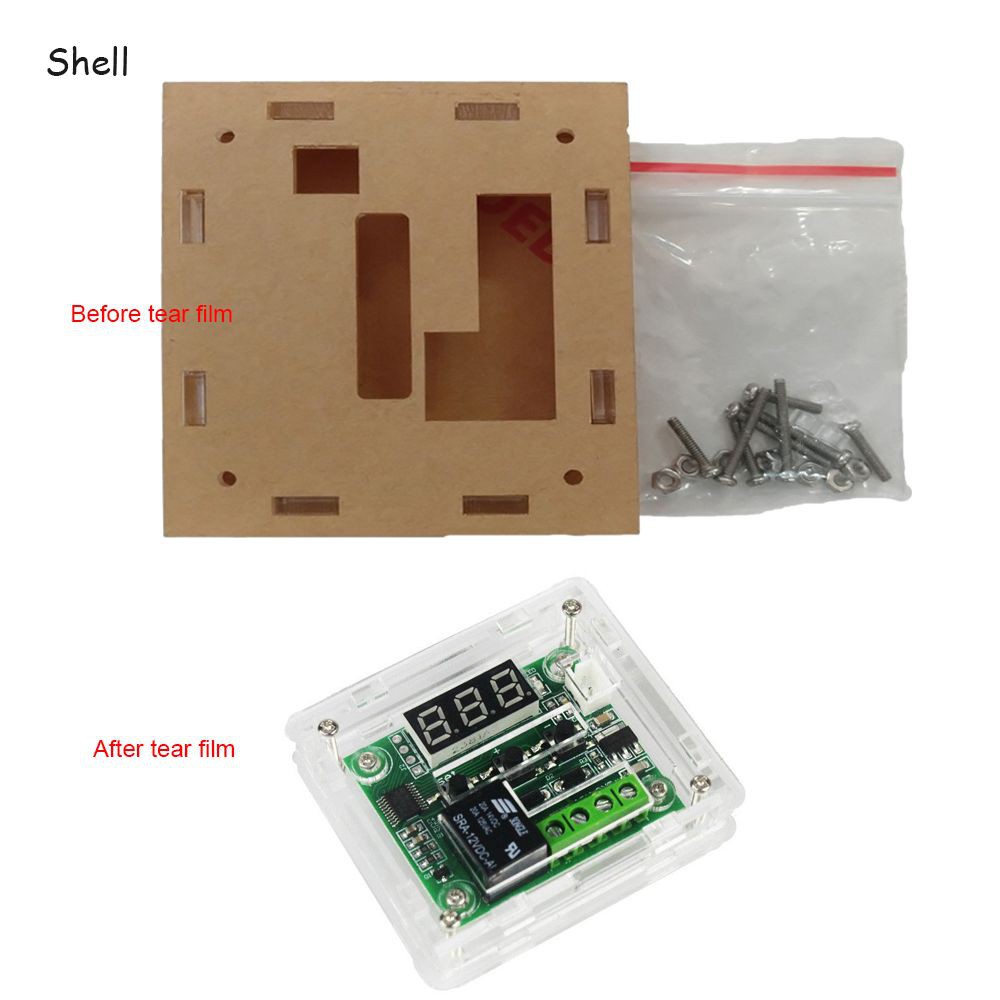

W1209 – Dc 12v Digital Thermostat Temprature Controller Module With Acrylic Cover

Original price was: ₨ 699.Current price is: ₨ 550.

  • Product details of W1209 – Dc 12v Digital Thermostat Temprature Controller Module With Acrylic Cover

    • Temperature range :-50-110
    • Dimensions: 48.5 * 40mm
    • Temperature control mode: ON / OFF
    • Resolution:When temperature is 0.1°, the resolution is -9.9~99.9, other temperature segment is 1°
    • Control accuracy: 0.1 °
    • Hysteresis accuracy: 0.1°
    • Refresh rate: 0.5S
    • High temperature protection: 0-110°
    • Supply voltage: DC 12V,24V
    • Static current: ≤ 35MA, attract current ≤ 65MA
    • Output voltage: DC 12V,24V
    • Output power: 20A relay
    • Measurement input: NTC (10K 0.5%) Waterproof Sensor
    • Environmental requirements: -10 ~ 60 ° ,Humidity 20% -85%
Weight 0.25 kg
Color

Pink

,

White

84 Items sold in last 3 minutes
Add more products  5,000 to cart and get free shipping!     !کارٹ میں مزید پروڈکٹس شامل کریں اور مفت شپنگ حاصل کریں
78 People watching this product now!
Description
  • Warm prompt: Dear buyer, Our cheapest transportation services Economic category logistics (SunYou Economic Air Mail ,China Post Ordinary Small Packet Plus ) can be traced only befor it arrive your country,please choose Standard category logistics if you want a full tracking info.
    100% brand new and high quality
    Quantity:1pcs

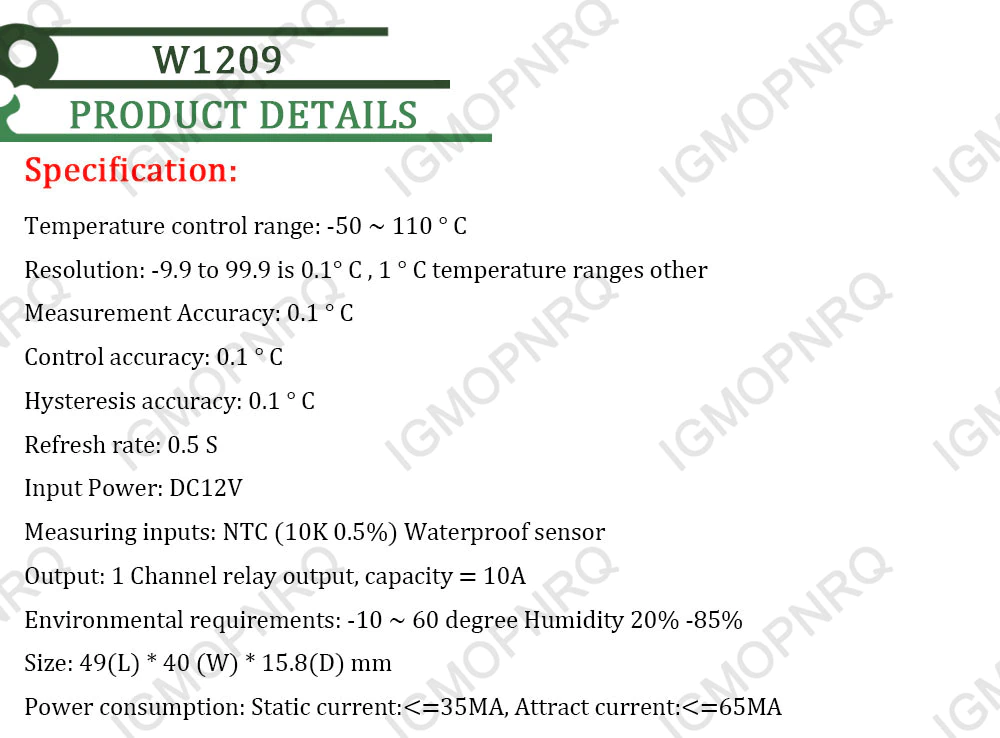

    Temperature control range: -50 ~ 110 ° C
    Resolution: -9.9 to 99.9 is 0.1° C , 1 ° C temperature ranges other

    Measurement Accuracy: 0.1 ° C

    Control accuracy: 0.1 ° C
    Hysteresis accuracy: 0.1 ° C
    Refresh rate: 0.5 S
    Input Power: DC12V
    Measuring inputs: NTC (10K 0.5%) Waterproof sensor 0.5M
    Output: 1 Channel relay output, capacity = 10A
    Environmental requirements: -10 ~ 60 degree Humidity 20% -85%
    Size: 48 (L) * 40 (W) * 14 (D) mm
    Power consumption: Static current:<=35MA, Attract current:<=65MA
