Technical Parameters:

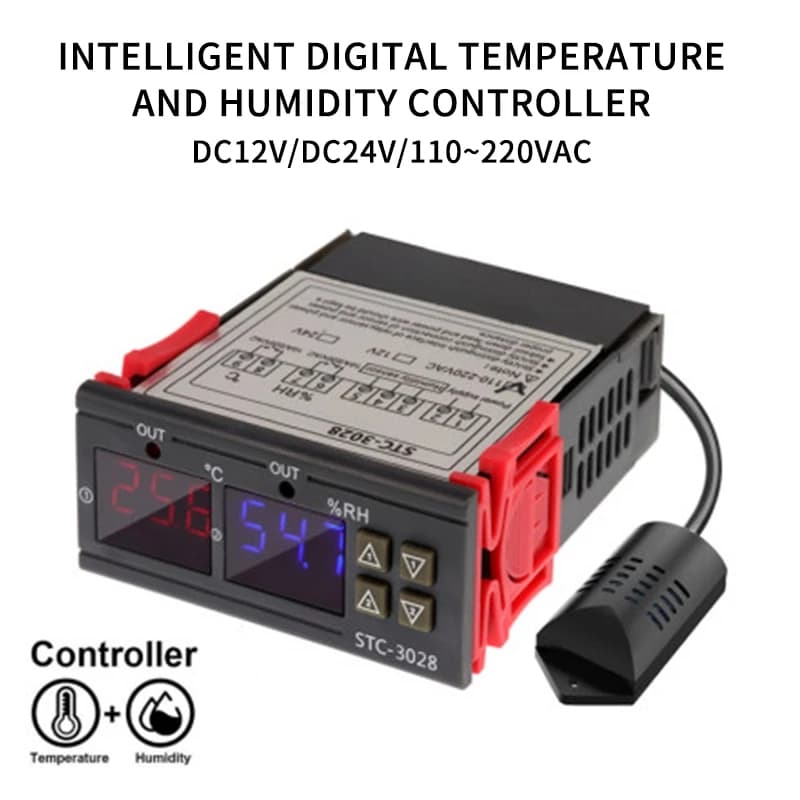

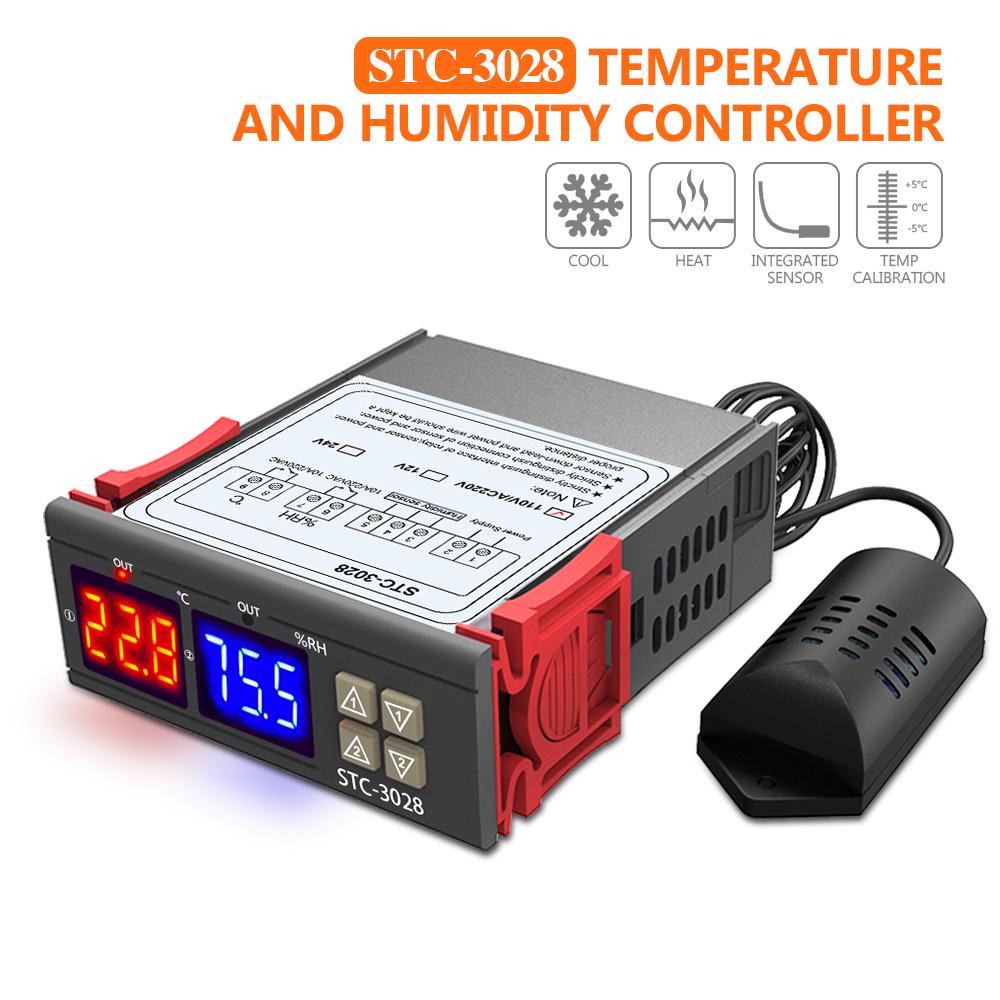

- STC-3028:
- Be able to control temperature and humidity at the same time.
- Be able to connect with humidifier and dehumidifier equipment at the same time.
- Be able to connect with refrigeration/ heating and humidifier/dehumidifier equipment at the same time.
- Heating/Cooling function could be set separately for refrigeration and heating to protect temperature controller from violent change. Same as humidity Control.
- Supporting Temp and Humidity Calibration
- Dual Display Window,Be able to display measured temperature/humidity and set temp/humidity at the same time
Power Supply:110-220VAC ± 10%, 50/60Hz or DC 12V
Temperature Control Range:0°C~+80°C
Humidity Control Range:00%RH~100%RH
Accuracy:+/-1°C 0.1%RH
Relay Capacity:10A/240V AC
Integrated sensor:Sense temperature and humidity
Heating:Start temperature<Stop temperature
Cooling:Start temperature>Stop temperature
Humidification:Start humidity<Stop humidity
Dehumidification:Start humidity >Stop humidity

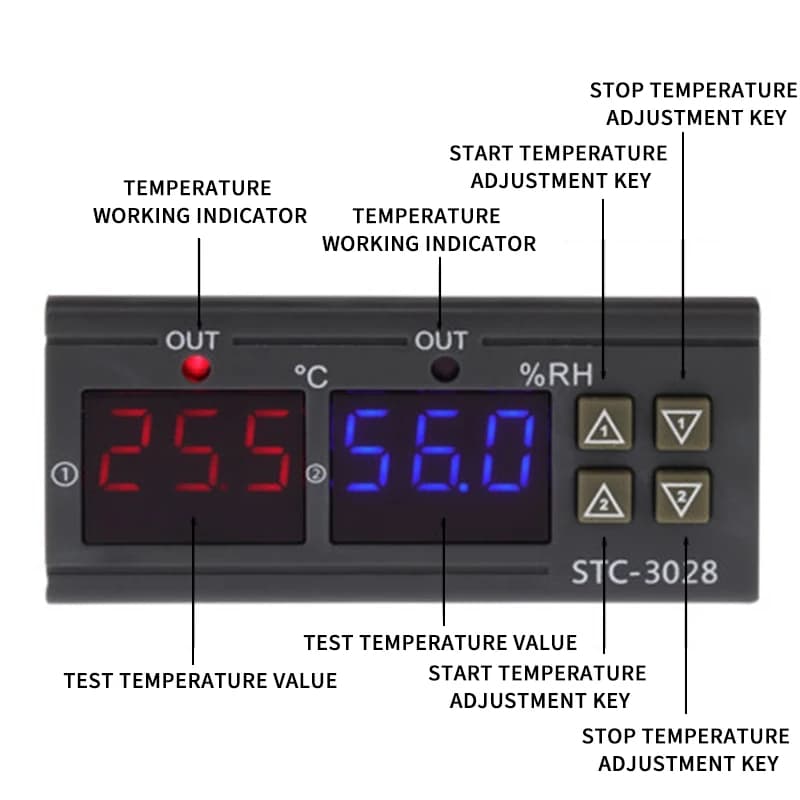

Long press UP 1 button for 3 seconds, ① display flashes, press UP or DOWN button to set the start temperature(20°C default)
Long press DOWN 1 button for 3 seconds, ① the display flashes, press UP or DOWN button to set the stop temperature (30°C default)
Long press UP 2 button for 3 seconds, ② display flashes, press UP or DOWN button to set the start humidity(40%RH default)
Long press DOWN 2 button for 3 seconds, ② the display flashes, press UP or DOWN button to set the stop humidity (60%RH default)
Long press DOWN 1 and DOWN 2 button for 3 seconds to reset the controller.
Long press UP 1 and DOWN 1 to calibrate the temperature, -10~10 °C
Long press UP 2 and DOWN 2 to calibrate the humidity
